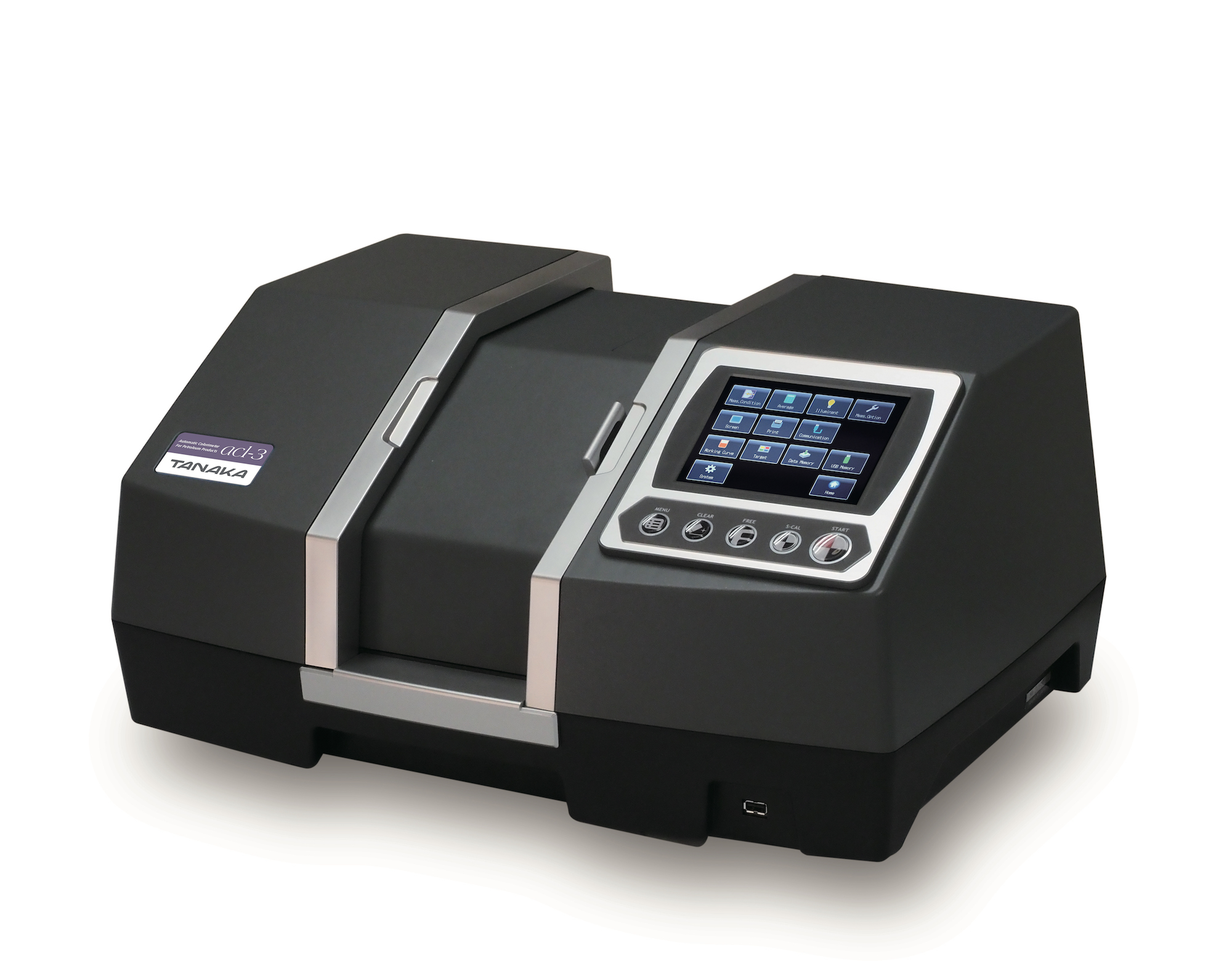

Automatic Colorimeter for Petroleum Products acl-3

分光式石油製品色試験器 OME 7700



acl-3 automatically determines 4 kinds of Colors - Saybolt, ASTM, Pt-Co/Hazen, and Gardner Colors, utilizing the Tri-Stimulus values from spectroscopy method prescribed in ASTM D6045, which generates equivalent test results with conventional manual precision, in about 5 seconds. Since no subjective judgement needs to be called, a perfect traceability is achieved.

ce

Specifications

Test Methods ASTM Color: ASTM D1500, D6045, ISO 2049
Saybolt Color: ASTM D156, D6045
Pt-Co / Hazen Color: ASTM D1209, D 5386, ISO 6271
Gardner Color: ASTM D1544, ISO 4630
Measurement Method Tri-Stimulus values from spectroscopy method
Photodetector CMOS Linear image sensor
Measuring Wavelength 400 nm to 700 nm, 10 nm interval
Light Source Lamp White LED (Lifetime: approx. 20,000 h)
Display Panel 5.7 inch TFT color LCD Touch Panel
Interface USB port (for communication with PC)
USB memory (for file system: FAT32)
Parallel port (for printer)
Size (W x D x H) 540 mm x 383 mm x 255 mm
Weight 15.5 kg
Power Consumption AC 100 V to 240 V 50 / 60 Hz 40 VA (max)

Colorimeter Petroleum/Refining/Pipeline Lubricants Biofuels Petrochemical/Solvents Kerosene Asphalt ASTM D156 ASTM D1209 ASTM D1500 ASTM D1544 ASTM D5386 JIS K 2580
